TC2030-ALT-NL Cable for use with Altera USB Blaster More...
Item #: TC2030-ALT-NL

Only some items on stock - order quickly!
Delivery time: 3 - 4 weeks

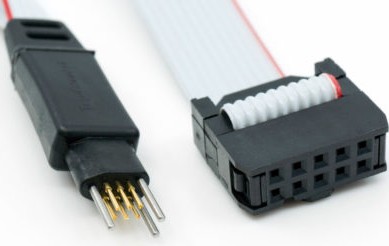

The TC2030-ALT-NL cable is a special cable that has a TC2030 Tag-Connector at one end and a 10-pin 0.1" pitch female IDC connector at the other. The 10-pin IDC can be plugged directly into some Altera USB Blasters and ByteBlasters.

The cable is wired as follows:

TC2030-NL 10-pin 0.1" IDC
TC2030-ALT-NL Connections
1 4     Vref
2 5     TMS
3 9     TDI
4 1     TCLK
5 2,10  GND
6 3     TDO

Please refer to the TC2030-IDC-NL datasheet for details of the TC2030-NL connector and footprint.
