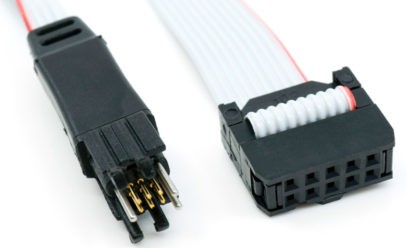

The TC2030-ALT cable is a special cable that has a TC2030 Tag-Connector at one end and a 10-pin 0.1" pitch female IDC connector at the other.
The 10-pin IDC can be plugged directly into some Altera USB Blasters and ByteBlasters.
The cable is wired as follows:
| TC2030 | 10-pin 0.1" IDC |
|---|---|
| 1 | 4 Vref |
| 2 | 5 TMS |
| 3 | 9 TDI |
| 4 | 1 TCLK |
| 5 | 2,10 GND |
| 6 | 3 TDO |
Please refer to the TC2030-IDC datasheet for details of the TC2030 connector and footprint.
